RabbitMQ 延迟队列的实现,是通过死信队列与转发队列配合实现延时消息的功能
本篇将利用RabbitMQ的延时队列插件,实现延时功能,下面分两部分介绍怎么实现延时功能
1.用Docker安装 RabbitMQ和延时插件
插件下载地址:https://www.rabbitmq.com/community-plugins.html
安装方式有两种:
1.使用Dockerfile 做成镜像,运行镜像即可,简单方便
2.启动rabbitmq容器,拿到容器Id,然后把插件复制进去,再启用插件
第一种方式(先下载好插件,放入Dockerfile文件所在目录):
1.Dockerfile内容
FROM rabbitmq:3.8.2-management
COPY ["rabbitmq_delayed_message_exchange-3.8.0.ez" , "/plugins/"]
RUN rabbitmq-plugins enable rabbitmq_delayed_message_exchange
2.构建:docker build -t rabbitmq:3.8.2-management .
3.运行:docker run -it -d --hostname my-rabbit --name rabbitmq -p 15672:15672 -p 5672:5672 -v /data/rabbitmq/data:/var/lib/rabbitmq -e RABBITMQ_DEFAULT_USER=admin -e RABBITMQ_DEFAULT_PASS=admin123456 rabbitmq:3.8.2-management
第二种方式:
1.先运行rabbitmq: docker run -it -d --hostname rabbit-host --name rabbitmq -v /data/rabbitmq/data:/var/lib/rabbitmq -e RABBITMQ_DEFAULT_USER=写你想要的名字-e RABBITMQ_DEFAULT_PASS=写你想要的密码 -p 15672:15672 -p 5672:5672 rabbitmq:3.8.2-management
2.登录RabbitMq客户端 http://自己的地址:15672/
3.把插件上传到服务器目录
4.查看容器的ID:docker ps
5.把插件复制到容器:
格式:docker cp 本地文件路径 counterID全称:容器路径
docker cp rabbitmq_delayed_message_exchange-3.8.0.ez 982b190bf852:/plugins
6.进入容器:docker exec -it rabbitmq /bin/bash ,查看插件是否复制进去了
7.激活插件:cd /plugins ,rabbitmq-plugins enable rabbitmq_delayed_message_exchange
8.重启容器:docker restart rabbitmq
9.进入15672后台,可以看到rabbitMq客户端就会出现消息延迟队列的类型:delayedExchange 队列

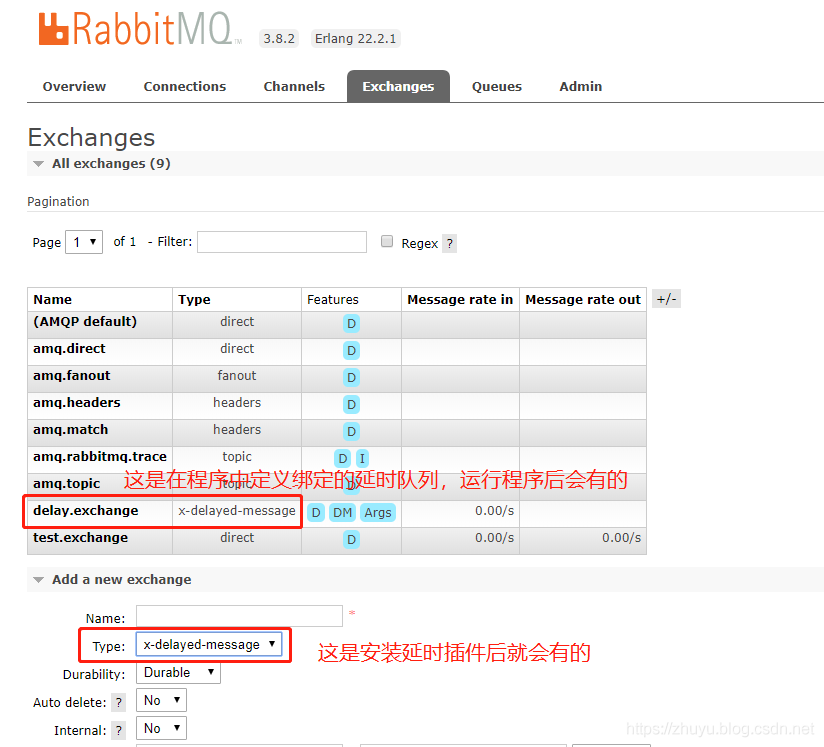

我使用第一种方式,在本地打包了一个镜像,运行该镜像后访问 http://localhost:15672
,在Exchanges–下面的Add a new exchanges — type下拉框中看到 x-delayed-message 就说明插件安装、启动成功了
2.使用SpringBoot项目测试延时队列和普通队列
1.引入依赖
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-amqp</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
2.添加rabbitmq 地址和帐号
spring:
rabbitmq:
host: 192.168.68.134
port: 5672
username: admin
password: admin123456
listener:
direct:
acknowledge-mode: MANUAL
simple:
acknowledge-mode: MANUAL
3.配置队列信息
@Configuration
public class RabbitConfig {
// 支付超时延时交换机
public static final String Delay_Exchange_Name = "delay.exchange";
//exchange name
public static final String Default_Exchange_Name = "test.exchange";
//微信支付后,发送支付队列
public static final String Order_Pay_Queue_Name = "order_pay";
//超时订单关闭队列
public static final String Timeout_Trade_Queue_Name = "close_trade";
@Bean
public Queue orderPayQueue(){
return new Queue(RabbitConfig.Order_Pay_Queue_Name , true);
}
@Bean
public Queue delayPayQueue() {
return new Queue(RabbitConfig.Timeout_Trade_Queue_Name, true);
}
// 定义广播模式的延时交换机 无需绑定路由
@Bean
FanoutExchange delayExchange(){
Map<String, Object> args = new HashMap<String, Object>();
args.put("x-delayed-type", "direct");
FanoutExchange topicExchange = new FanoutExchange(RabbitConfig.Delay_Exchange_Name, true, false, args);
topicExchange.setDelayed(true);
return topicExchange;
}
@Bean
public DirectExchange defaultExchange() {
return new DirectExchange(RabbitConfig.Default_Exchange_Name, true, false);
}
// 绑定延时队列与交换机
@Bean
public Binding delayPayBind() {
return BindingBuilder.bind(delayPayQueue()).to(delayExchange());
}
// 绑定普通消息队列
@Bean
public Binding orderPayBind(){
return BindingBuilder.bind(orderPayQueue()).to(defaultExchange()).with(RabbitConfig.Order_Pay_Queue_Name);
}
// 定义消息转换器
@Bean
Jackson2JsonMessageConverter jsonMessageConverter() {
return new Jackson2JsonMessageConverter();
}
// 定义消息模板用于发布消息,并且设置其消息转换器
@Bean
RabbitTemplate rabbitTemplate(final ConnectionFactory connectionFactory) {
final RabbitTemplate rabbitTemplate = new RabbitTemplate(connectionFactory);
rabbitTemplate.setMessageConverter(jsonMessageConverter());
return rabbitTemplate;
}
@Bean
RabbitAdmin rabbitAdmin(final ConnectionFactory connectionFactory) {
return new RabbitAdmin(connectionFactory);
}
}
4.添加生产者
@Component
public class RabbitmqPublish {
@Autowired
RabbitTemplate rabbitTemplate;
/**
* 发送普通消息
* @param routingKey
* @param content
*/
public void sendMsg(String routingKey, String content){
rabbitTemplate.convertAndSend(RabbitConfig.Default_Exchange_Name , routingKey , content);
}
/**
* 发送延时信息
* @param content 内容
* @param routingKey routingKey
* @param delay 延时时间,秒
*/
public void sendTimeoutMsg(String content , String routingKey, int delay){
// 通过广播模式发布延时消息 延时30分钟 持久化消息 消费后销毁 这里无需指定路由,会广播至每个绑定此交换机的队列
rabbitTemplate.convertAndSend(RabbitConfig.Delay_Exchange_Name, routingKey, content, message ->{
message.getMessageProperties().setDeliveryMode(MessageDeliveryMode.PERSISTENT);
message.getMessageProperties().setDelay(delay * 1000); // 毫秒为单位,指定此消息的延时时长
return message;
});
}
}
5.添加消费者
@Component
public class RabbitmqConsumer {
private Logger logger = LoggerFactory.getLogger(getClass());
//消费延时消息
@RabbitListener(queues = RabbitConfig.Timeout_Trade_Queue_Name)
public void process(String content, Message message, Channel channel) throws IOException {
try {
logger.info("延迟队列的内容[{}]", content);
channel.basicAck(message.getMessageProperties().getDeliveryTag(), false);
logger.info("超时信息处理完毕");
} catch (Exception e) {
logger.error("处理失败:{}", e.getMessage());
channel.basicReject(message.getMessageProperties().getDeliveryTag(), false);
}
}
//消费普通消息
@RabbitListener(queues = RabbitConfig.Order_Pay_Queue_Name)
public void process1(String content, Message message, Channel channel) throws IOException {
try {
logger.info("普通队列的内容[{}]", content);
channel.basicAck(message.getMessageProperties().getDeliveryTag(), false);
} catch (Exception e) {
logger.error("处理失败:{}", e.getMessage());
channel.basicReject(message.getMessageProperties().getDeliveryTag(), false);
}
}
}

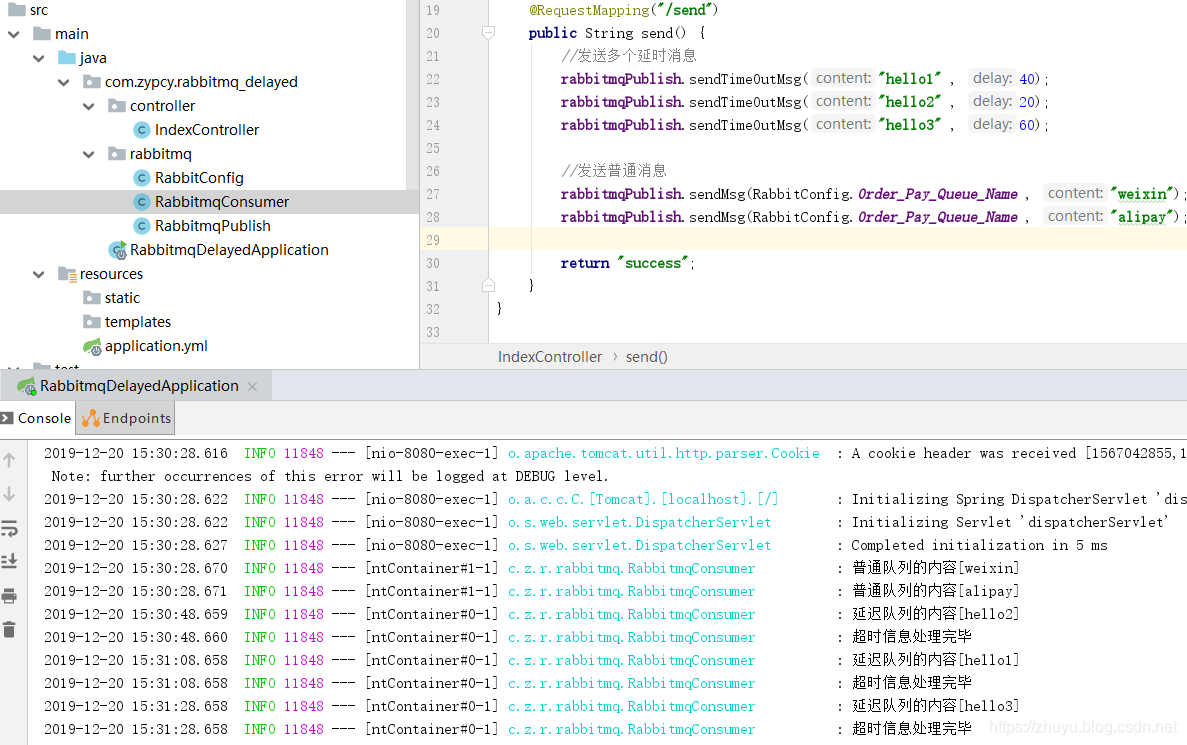

6.添加一个控制器,发送队列消息,看控制台结果,发了3个延时消息,分别延时 40秒、20秒、60秒,看那个先被消费,再发送了两个普通消息,测试结果请看下面的截图
/**
* @Author admin
* @Date
*/
@RestController
public class IndexController {
@Autowired
RabbitmqPublish rabbitmqPublish;
@RequestMapping("/send")
public String send() {
//发送多个延时消息
rabbitmqPublish.sendTimeoutMsg("hello1" , "routingKey1" ,40);
rabbitmqPublish.sendTimeoutMsg("hello2" , "routingKey2" ,20);
rabbitmqPublish.sendTimeoutMsg("hello3" , "routingKey1" ,60);
//发送普通消息
rabbitmqPublish.sendMsg(RabbitConfig.Order_Pay_Queue_Name , "weixin");
rabbitmqPublish.sendMsg(RabbitConfig.Order_Pay_Queue_Name , "alipay");
return "success";
}
}
可以看到普通消息先被消费,后面延时消息第一个被消费的是 延时20秒的 hello2,测试成功
